For Diesel Injector Repair Shops
Suitable for daily injector testing, maintenance and calibration.
HCR318

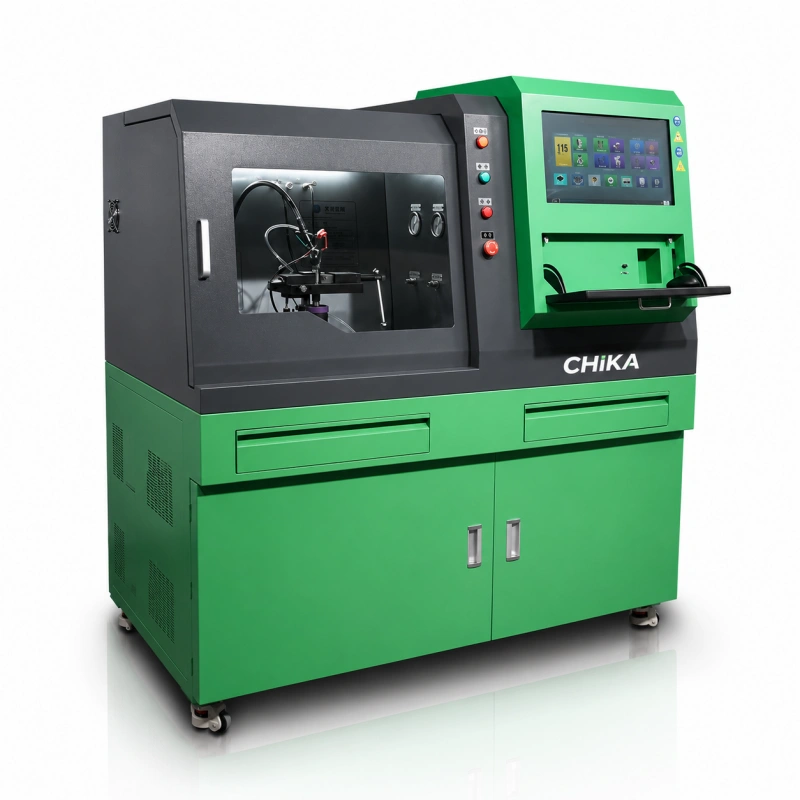

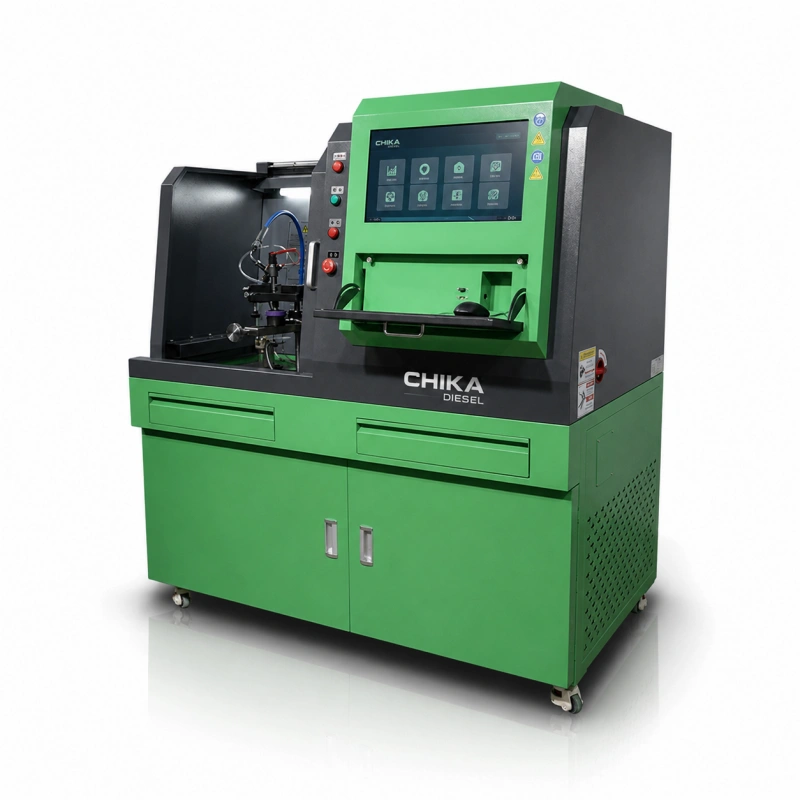

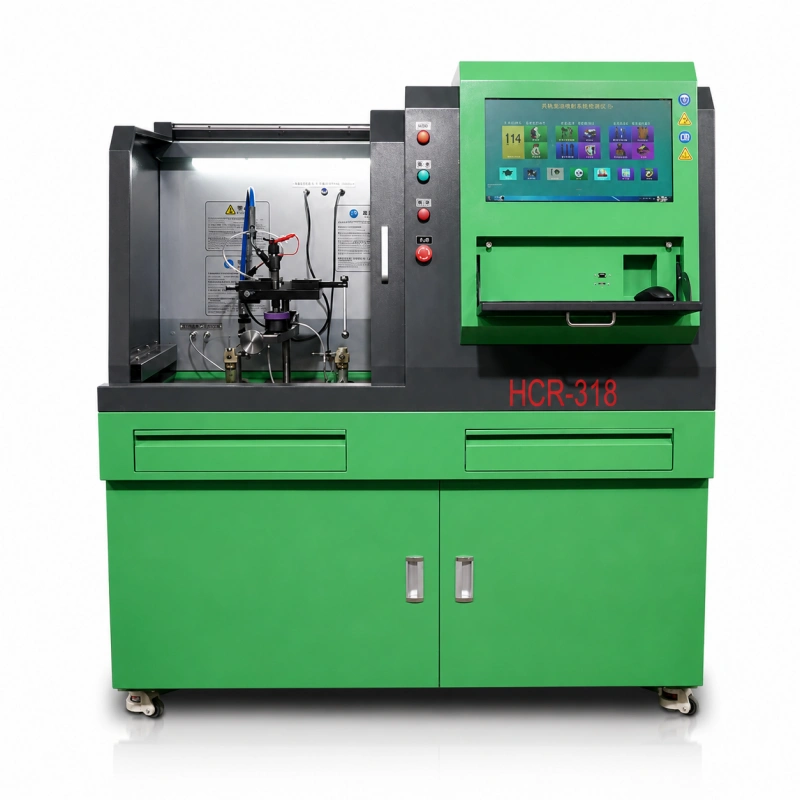

HCR318 Common Rail Injector Test Bench
HCR318 is a professional common rail injector test bench designed for testing and maintenance of Bosch, Denso, Delphi and Siemens injectors. It supports high-pressure testing, injector performance evaluation and coding functions for diesel repair workshops and service centers.
- ✓Supports Bosch, Denso, Delphi and Siemens Injectors
- ✓Supports Injector Coding Functions
- ✓Built-in Large Injector Test Database
Maximum Pressure2400 bar
ConfigurationStandard Model
DatabaseMore than 7000 test plans
Test ObjectsCommon Rail Injectors, Piezo Injectors
Overview
Key Technical Data
Tested ProductsCommon rail injectors, piezo injectors.
Injector TypeBosch, Denso, Delphi, Siemens Piezo and Solenoid Injectors
High Pressure PumpIndustrial High-Pressure Pump
Measurement SystemElectronic Flow Measurement System
Built-in Test DataMore than 7000 test plans
Motor Power4 kW
Power Supply380V / 50Hz / 3 Phase
Configuration TypeStandard Model
Specifications
Technical Specifications
General Data
- Maximum Pressure2400 bar
- Motor Power4 kW
- Power Supply380V / 50Hz
- Tank Capacity20 L
- Weight350 kg
Specifications may vary according to configuration. Final technical data should be confirmed before order confirmation.
Capabilities
Testing Functions
Injector Testing⌄
- Solenoid Injector TestingSupported
- Piezo Injector TestingSupported
- Leak TestSupported
- Full Load TestSupported
- Idle TestSupported
Advanced Features
Injector Coding Functions
✓Bosch IMA
✓Bosch ISA
✓Denso QR
✓Delphi C2i
✓Delphi C3i
Digital Capabilities
Software & Service
Software SystemCHIKA Intelligent Test System
Database QuantityMore than 7000 test plans
Online UpdateSupported
Remote SupportSupported
Test ReportPrintable And Exportable
LanguagesEnglish, Spanish, Russian, French, Arabic
Equipment Scope
Configuration Options
Standard configuration may vary according to injector brands and customer requirements. Optional accessories can be added before shipment.
Standard Configuration
| Main Test Bench Unit HCR318 main testing bench with control system. |
| Industrial Computer Built-in industrial computer with CHIKA testing software. |
| Injector Test Fixtures Standard injector fixture set for Bosch, Denso, Delphi and Siemens injectors. |
| Flow Measurement System Electronic fuel flow measurement system. |
| Tool Kit Basic maintenance and installation tools. |
Optional Configuration
| Additional Injector Fixtures Extra fixtures for special injector models. Suitable for: Bosch / Denso / Delphi Depends on injector model. |
| Custom Power Supply Special voltage configuration. Suitable for: Different countries Factory confirmation required. |
| Remote Training Service Online installation and operation training. Suitable for: Distributors and workshops Optional service item. |
Available Power Options
- ✓ 220V / 50Hz / 1 Phase
- ✓ 220V / 60Hz / 1 Phase
- ✓ 380V / 50Hz / 3 Phase
- ✓ 415V / 50Hz / 3 Phase
Optional Modules
- ✓ Common Rail Injector Module
- ✓ Piezo Injector Module
- ✓ Coding Module
Fixture Notes
Fixture availability depends on injector model and manufacturer. Custom fixtures can be supplied upon request.
Use Cases
Application Scenarios
For Service Centers
Provides accurate injector diagnosis and performance verification.
For Distributors
Suitable for equipment resale and workshop installation projects.
Support
Frequently Asked Questions
What injectors can HCR318 test?⌄
HCR318 supports Bosch, Denso, Delphi and Siemens common rail injectors.
Does HCR318 support piezo injectors?⌄
Yes, piezo injector testing is supported.
Can HCR318 generate test reports?⌄
Yes, printable and exportable reports are available.
Is injector coding supported?⌄
Yes, depending on injector brand and software version.
What power supply is required?⌄
380V / 50Hz / 3 Phase is the standard configuration.
Need Technical Recommendation?
Tell us your testing requirements and injector models. Our engineers will recommend the most suitable CHIKA test bench.
