HCR318C

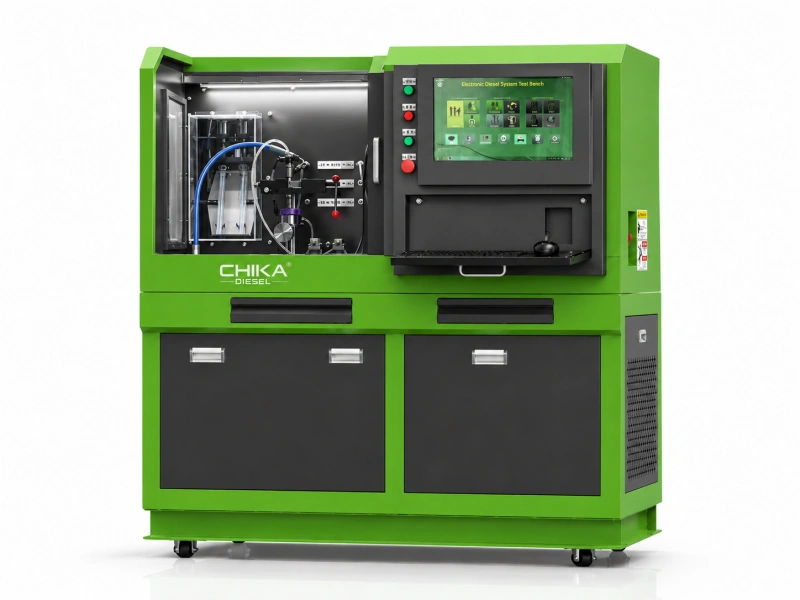

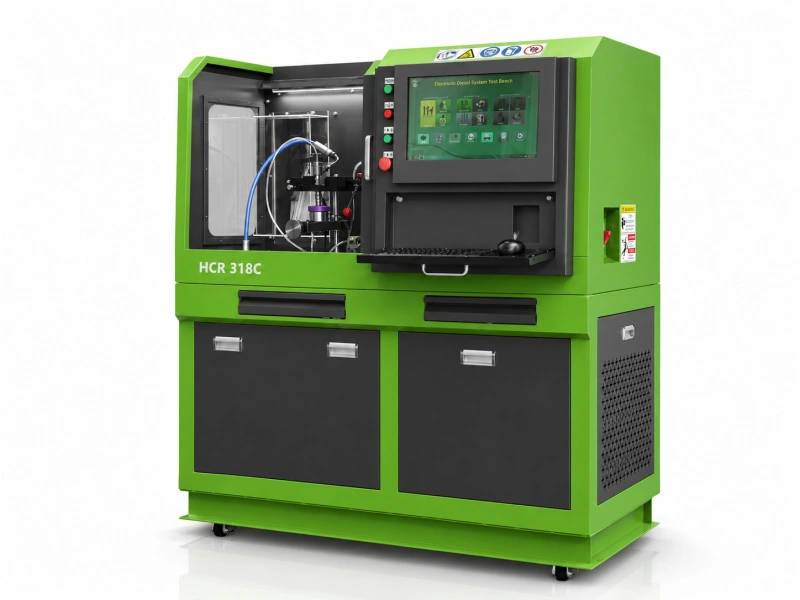

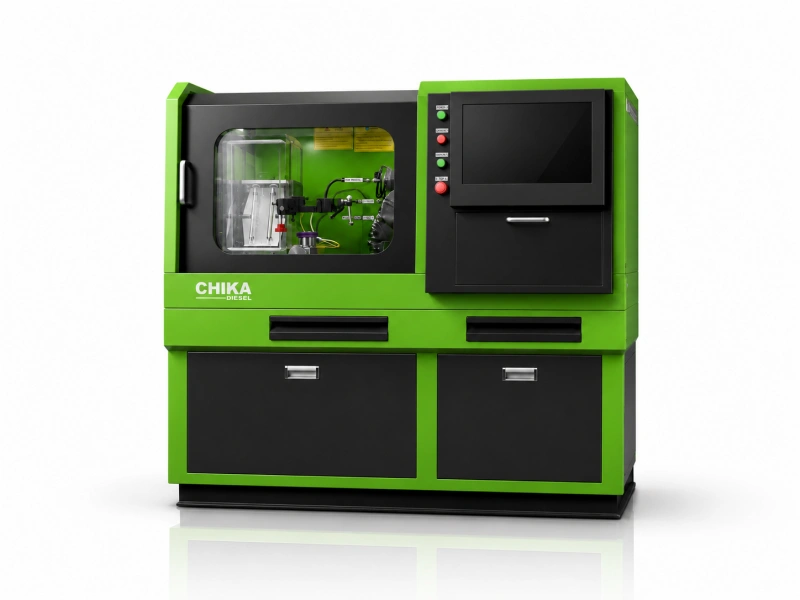

HCR318C Multi-Functional Common Rail Test Bench
HCR318C is a multi-functional common rail test bench designed for testing common rail injectors, common rail pumps and related diesel fuel system components. Equipped with dual flow meter technology, high-pressure rail simulation and comprehensive test functions, it is suitable for professional diesel service workshops and training centers.
- ✓Dual flow meter measurement system
- ✓Common rail injector and pump testing
- ✓Industrial computer control system
Maximum Pressure240 MPa / 2400 bar
ConfigurationStandard Model
Database10000+ Test Plans
Test ObjectsCommon Rail Injectors, Piezo Injectors, Common Rail Pumps
Overview
Key Technical Data
Tested ProductsCommon rail injectors, piezo injectors and common rail pumps
Injector TypeBosch, Denso, Delphi, Siemens / Continental Common Rail Injectors
High Pressure PumpBosch CP3.3
Measurement SystemDual Flow Meter System
Built-in Test Data10000+ Test Plans
Motor Power5.5 kW
Power SupplyAC 220V / 380V, 50Hz / 60Hz
Configuration TypeStandard Model
Specifications
Technical Specifications
General Data
- Maximum Rail Pressure240 MPa / 2400 bar
- Tested ProductsCommon rail injectors and common rail pumps
- Supported Injector BrandsBosch, Denso, Delphi, Siemens / Continental
- Supported Pump BrandsBosch CP1, CP2, CP3, HP3, HP4
Hydraulic System
- High Pressure PumpBosch CP3.3
Measurement System
- Fuel MeasurementDual Flow Meter System
Software
- Built-in Database10000+ Test Plans
- Operating SystemIndustrial Computer Control System
Electrical Data
- Motor Power5.5 kW
- Power SupplyAC 220V / 380V, 50Hz / 60Hz
- Control VoltageDC 12V / 24V
- Injector Drive Voltage0–200V
Oil System
- Oil Tank Capacity20L
- Temperature ControlAutomatic Heating and Cooling
- Filtration Accuracy3–5μm
Dimensions & Weight
- Machine Dimensions1200 × 900 × 1700 mm
- Gross WeightApprox. 350kg
- Noise Level<75dB
Specifications may vary according to configuration. Final technical data should be confirmed before order confirmation.
Capabilities
Testing Functions
Injector Testing⌄
- Injection Quantity TestSupported
- Return Oil Quantity TestSupported
- Leak TestSupported
- Idle TestSupported
- Full Load TestSupported
- Pre Injection TestSupported
Pump Testing⌄
- Common Rail Pump Flow TestSupported
- Rail Pressure Generation TestSupported
- Pump Suction TestSupported
- Pump Delivery TestSupported
Electrical Testing⌄
- Injector Resistance TestSupported
- Injector Resistance TestSupported
Software⌄
- Automatic Data ComparisonSupported
- Automatic Test ReportSupported
Advanced Features
Injector Coding Functions
✓Bosch IMA
✓Bosch ISA
✓Denso QR
✓Delphi C2i
✓Delphi C3i
✓Siemens Correction Code
✓IQA
✓VDO / ICC
Digital Capabilities
Software & Service
Software SystemCHIKA Multi-Functional Common Rail Test Software
Database Quantity10000+ Test Plans
Online UpdateSupported
Remote SupportSupported
Wi-Fi ConnectionSupported
Test ReportPrintable And Exportable
LanguagesEnglish, Chinese, Spanish, Russian, French, Arabic, Portuguese
Equipment Scope
Configuration Options
Standard Configuration
| Main Test Bench Unit HCR318C main test bench |
| Industrial Computer Industrial control computer system |
| Bosch CP3.3 Pump High-pressure pump system |
| Dual Flow Meter System Precision fuel measurement system |
| Injector Fixture Set Standard injector fixture package |
| Pump Fixture Set Standard common rail pump fixture package |
| Control Software Built-in database and test software |
Optional Configuration
| HEUI Module HEUI injector testing module Suitable for: Caterpillar / Navistar Optional |
| Piezo Upgrade Package Advanced piezo injector support Suitable for: Bosch Piezo Optional |
| Custom Fixture Package Special injector fixtures Suitable for: Special applications Factory confirmation required |
| Remote Training Service Online training and commissioning Suitable for: Dealers and workshops Optional service |
Use Cases
Application Scenarios
Diesel Pump Service Center
Common rail pump diagnosis and calibration.
Truck Fleet Maintenance
Heavy-duty truck fuel system testing.
Technical Training Center
Diesel fuel injection training and education.
Support
Frequently Asked Questions
Can HCR318C test common rail pumps?⌄
Yes. HCR318C supports both common rail injector and common rail pump testing.
What is the maximum rail pressure?⌄
The maximum rail pressure is 240 MPa / 2400 bar.
Does HCR318C support piezo injectors?⌄
Yes. Piezo injector testing is supported.
How many test plans are included?⌄
More than 10000 built-in test plans are available.
Is remote support available?⌄
Yes. Online technical support and software update services are available.
Need Technical Recommendation?
Tell us your testing requirements and injector models. Our engineers will recommend the most suitable CHIKA test bench.
More Options
Related Products

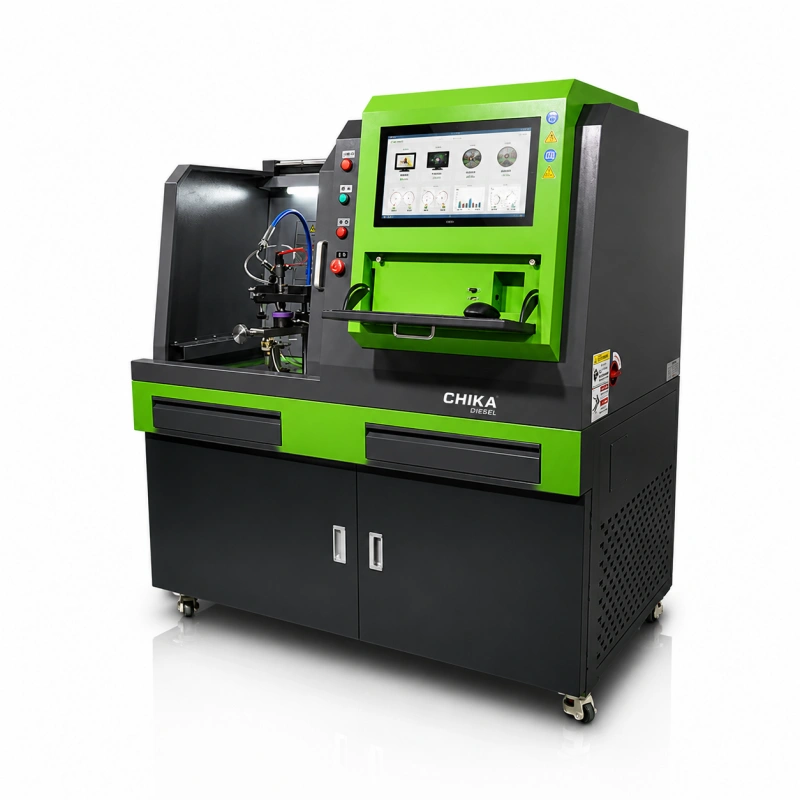

HCR318
HCR318 Common Rail Injector Test Bench
HCR318 is a professional common rail injector test bench designed for testing and maintenance of…
View Details →

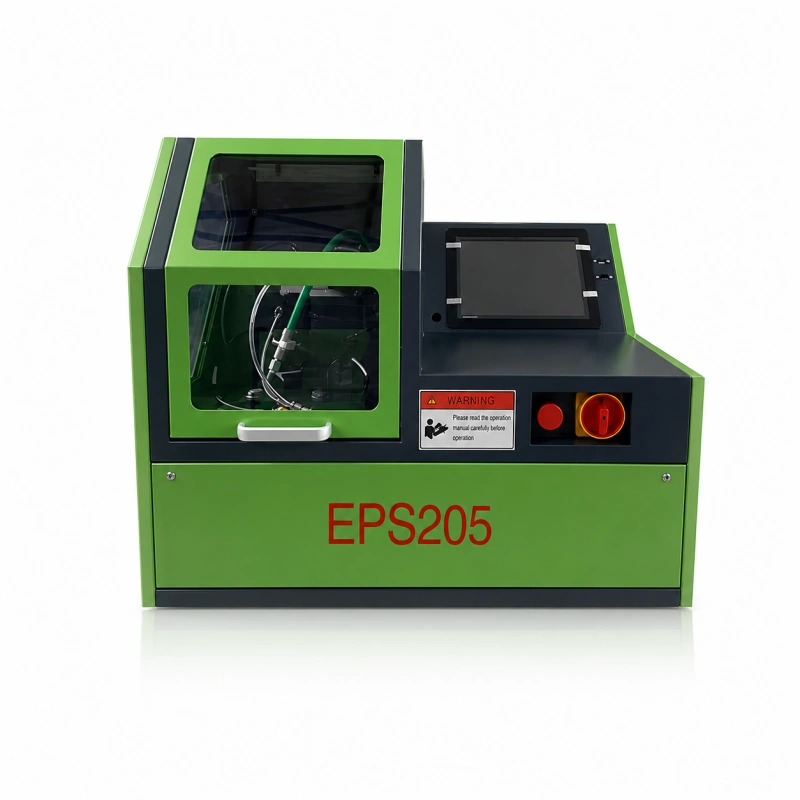

EPS205
