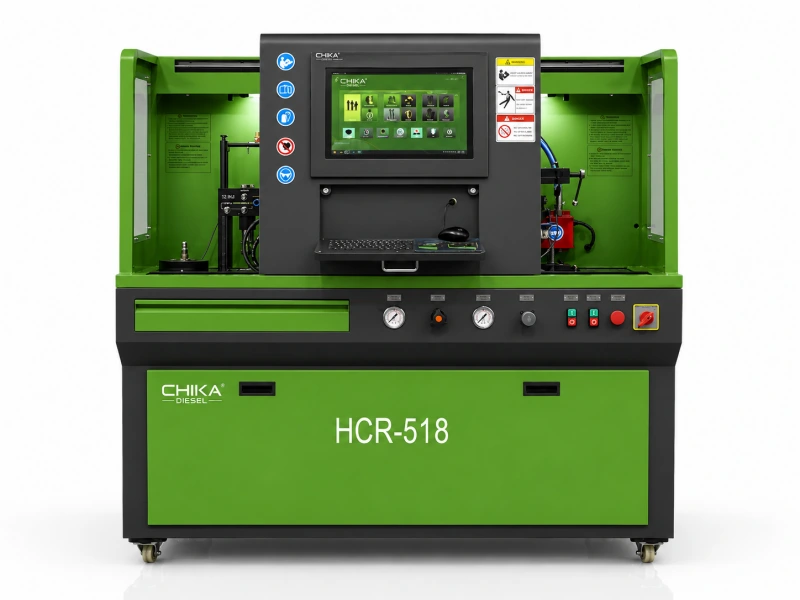

HCR518 Multi-Functional Common Rail Test Bench
HCR518 is a multi-functional diesel fuel injection test bench designed for common rail injectors, piezo injectors and HEUI injectors. Equipped with two independent working tables, Bosch CP3.3 high-pressure system and automatic coding functions, it is suitable for professional diesel injection workshops and training centers.
- ✓Dual working tables
- ✓Common rail and HEUI injector testing
- ✓Automatic injector coding
Maximum Pressure280 MPa / 2800 bar
ConfigurationStandard Model
Database7000+ Test Plans
Test ObjectsCommon Rail Injectors, Piezo Injectors, Common Rail Pumps, Heui Injectors, Heui Actuation Pumps
Overview
Key Technical Data
Tested ProductsCommon rail injectors, piezo injectors and HEUI injectors
Injector TypeBosch, Denso, Delphi, Siemens, Caterpillar, Cummins
High Pressure PumpBosch CP3.3
Measurement SystemHigh Precision Gear Flow Meter
Built-in Test Data7000+ Test Plans
Motor PowerCP3 Motor 4 kW
Power Supply380V 3 Phase (220V 3 Phase Optional)
Configuration TypeStandard Model
Specifications
Technical Specifications
General Data
- Maximum Rail Pressure280 MPa / 2800 bar
- Tested ProductsCommon rail injectors, piezo injectors and HEUI injectors
- Supported BrandsBosch, Denso, Delphi, Siemens, Caterpillar, Cummins
- Working TablesDual Working Tables
Hydraulic System
- High Pressure PumpBosch CP3.3
- Hydraulic Oil Pressure24 MPa
- Fuel Supply Pressure8 bar
- HEUI Pump Flow6 L/min
Measurement System
- Fuel MeasurementHigh Precision Gear Flow Meter
- Injector Filter Accuracy3–5 μm
Software
- Built-in Database7000+ Test Plans
- Control SystemIndustrial Computer
Electrical Data
- Supply Voltage380V 3 Phase (220V Optional)
- CP3 Motor Power4 kW
- HEUI Pump Motor4 kW
- Fuel Heating Power1 kW
Oil System
- Fuel Tank Capacity20 L
- Hydraulic Oil Tank20 L
- Test Tank Volume40 L
Dimensions & Weight
- Machine Size1580 × 820 × 1560 mm
- Packing Size1780 × 1020 × 1840 mm
- Machine Weight470 kg
- Gross Weight550 kg
- Noise Level<75 dB
Specifications may vary according to configuration. Final technical data should be confirmed before order confirmation.
Capabilities
Testing Functions
Injector Testing⌄
- Common Rail Injector TestSupported
- Piezo Injector TestSupported
- HEUI Injector TestSupported
- Injection Quantity TestSupported
- Return Flow TestSupported
- Leak TestSupported
- Idle TestSupported
- Full Load TestSupported
Coding⌄
- Bosch IMA Code GenerationSupported
- Denso QR Code GenerationSupported
- Delphi C3i CodingSupported
- Siemens Correction CodeSupported
System⌄
- Automatic Low Oil AlarmSupported
- Dual Working TablesSupported
Advanced Features
Injector Coding Functions
✓Bosch IMA
✓Denso QR
✓Delphi C3i
✓Siemens Correction Code
Digital Capabilities
Software & Service
Software SystemCHIKA Multi-Functional Diesel Test Software
Database Quantity7000+ Test Plans
Online UpdateSupported
Remote SupportSupported
Wi-Fi ConnectionSupported
Test ReportPrintable And Exportable
LanguagesEnglish, Chinese, Spanish, Russian, French, Arabic, Portuguese
Equipment Scope
Configuration Options
Final configuration depends on customer requirements. Optional modules can be added before shipment.
Standard Configuration
| Main Test Bench HCR518 Main Unit |
| CP3 High Pressure System Bosch CP3 |
| High Precision Flow Meter Built-in |
| Industrial Control Computer Included |
| CHIKA Test Software Lifetime License |
| Injector Fixtures Standard Set |
| Calibration Accessories Included |
| Tool Kit Included |
Optional Configuration
| Piezo Injector Module Suitable for: Piezo Injectors |
| HEUI Module Suitable for: CAT / Navistar |
| Common Rail Pump Module Suitable for: CP1/CP2/CP3/CP4 |
| EUI/EUP Module Suitable for: Heavy Duty Diesel |
| Coding Module Suitable for: Bosch Denso Delphi |
| Mechanical Pump Module Suitable for: Inline Pumps |
Available Power Options
- ✓ 220V / 50Hz / 1 Phase
- ✓ 220V / 60Hz / 1 Phase
- ✓ 380V / 50Hz / 3 Phase
- ✓ 380V / 60Hz / 3 Phase
- ✓ 415V / 50Hz / 3 Phase
Optional Modules
- ✓ Common Rail Injector Module
- ✓ Piezo Injector Module
- ✓ Common Rail Pump Module
- ✓ HEUI Module
- ✓ EUI / EUP Module
- ✓ Mechanical Pump Module
- ✓ Coding Module
Fixture Notes
Custom fixtures are available according to injector and pump models.
Use Cases
Application Scenarios
Diesel Pump Repair Centers
Suitable for testing common rail pumps and high pressure fuel systems.
Training Centers
Ideal for vocational schools and diesel injection training institutions.
Equipment Distributors
Suitable for distributors providing professional diesel injection service solutions.
Support
Frequently Asked Questions
Can HCR518 test HEUI injectors?⌄
Yes. HEUI testing is supported with the optional HEUI module.
Does HCR518 support piezo injectors?⌄
Yes. Bosch, Denso and Siemens piezo injectors are supported.
Can the software be updated online?⌄
Yes. Online software and database updates are available.
How many test plans are included?⌄
More than 7000 injector and pump test plans are included.
Can optional modules be added later?⌄
Yes. Most optional modules can be installed according to customer requirements.
