HCR918

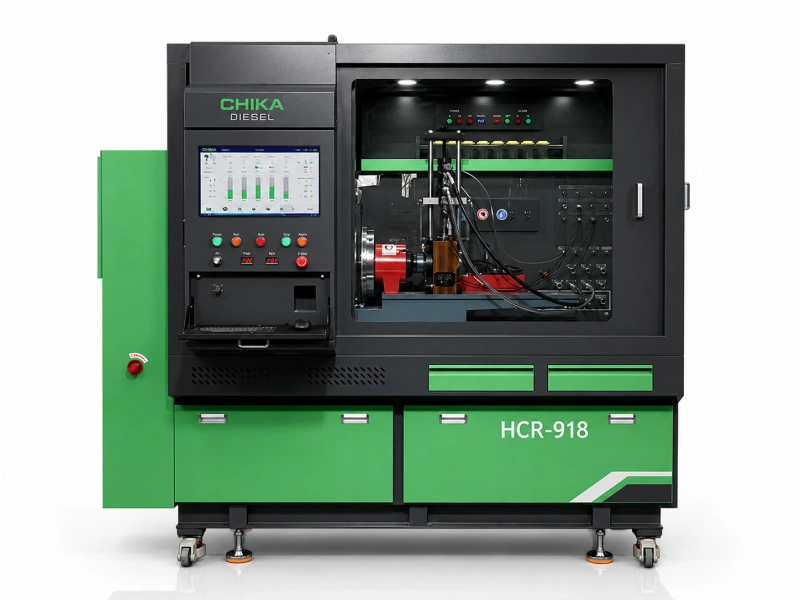

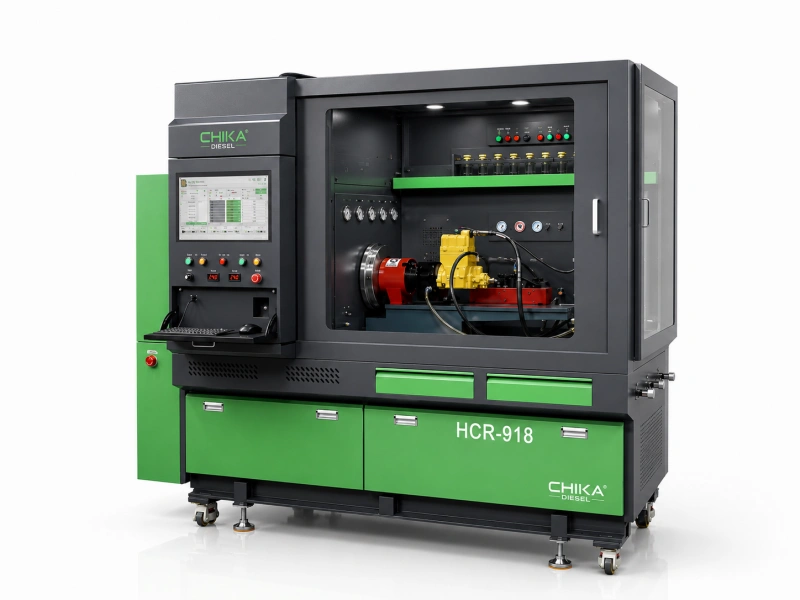

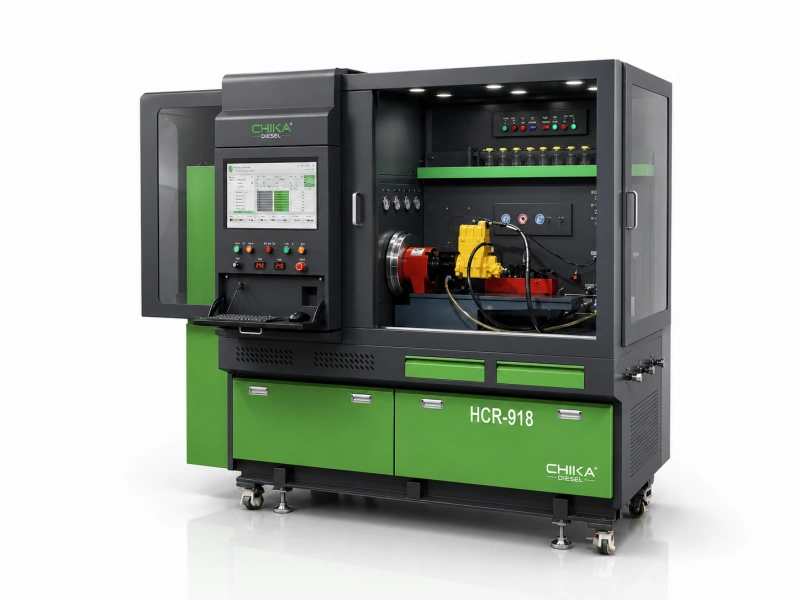

HCR918 Professional Common Rail Injector Test Bench

HCR918 is a high-performance common rail injector and pump test bench designed for professional diesel service centers. It supports common rail injectors, piezo injectors, HEUI injectors and common rail pumps with automatic coding, dual working tables and high-pressure CP3 testing system.

  • ✓Dual working tables
  • ✓2200 bar CP3 high-pressure system
  • ✓Injector & pump testing
Request Quote
HCR918 Professional Common Rail Injector Test Bench
Maximum Pressure220 MPa / 2200 bar
ConfigurationStandard Model
Database7000+ Test Plans
Test ObjectsCommon Rail Injectors, Piezo Injectors, Common Rail Pumps, Heui Injectors, Heui Actuation Pumps, Eui, Eup, Mechanical Inline Pumps, Distributor Pumps, Pt Injectors, Hpi Injectors
HCR918 Professional Common Rail Injector Test Bench
HCR918 Professional Common Rail Injector Test Bench
HCR918 Professional Common Rail Injector Test Bench
Overview

Key Technical Data

Tested ProductsCommon rail injectors, common rail pumps, piezo injectors, HEUI injectors
Injector TypeBosch, Denso, Delphi, Siemens, Caterpillar, Cummins
High Pressure PumpBosch CP1, CP2, CP3, CP4
Measurement SystemHigh Precision Electronic Flow Measurement
Built-in Test Data7000+ Test Plans
Motor Power7.5 kW
Power Supply220V / 380V
Configuration TypeStandard Model
Specifications

Technical Specifications

Performance

  • Maximum Rail Pressure2500 bar
  • Motor Power11 kW
  • Motor Speed0–4000 rpm
  • Power Supply380V / 220V
  • Fuel Tank Capacity40 L
  • Fuel Tank Capacity40 L
  • High Pressure PumpBosch CP3.3
  • Noise Level<75 dB

Measurement

  • Flow MeasurementElectronic Flow Meter

Software

  • Test Database7000+ Test Plans

Temperature

  • Fuel Temperature ControlHeating + Forced Cooling

Accuracy

  • Filtration Accuracy5 μm
Specifications may vary according to configuration. Final technical data should be confirmed before order confirmation.
Capabilities

Testing Functions

Injector⌄
  • Common Rail Injector TestSupported

    Bosch, Denso, Delphi, Siemens, Piezo

  • Injector Leak TestSupported
  • Full Load TestSupported
  • Idle Speed TestSupported
  • Pre Injection TestSupported
  • Return Flow TestSupported
  • Atomization TestSupported
Pump⌄
  • Common Rail Pump TestSupported

    CP1, CP2, CP3, CP4

  • Rail Pressure TestSupported
  • Delivery Quantity TestSupported
HEUI⌄
  • HEUI Injector TestSupported
  • HEUI Pump TestSupported
Mechanical⌄
  • Inline Pump TestSupported
  • Rotary Pump TestSupported
Coding⌄
  • Injector CodingSupported

    Bosch / Denso / Delphi / Siemens

Advanced Features

Injector Coding Functions

✓Bosch IMA
✓Bosch ISA
✓Denso QR
✓Delphi C2i
✓Delphi C3i
✓Siemens Correction Code
✓IQA
✓VDO / ICC
Digital Capabilities

Software & Service

Software SystemCHIKA Professional Diesel Test Software
Database Quantity7000+ Test Plans
Online UpdateSupported
Remote SupportSupported
Wi-Fi ConnectionSupported
Test ReportPrintable And Exportable
LanguagesEnglish, Chinese, Spanish, Russian, French, Arabic, Portuguese
Equipment Scope

Configuration Options

HCR918 can be customized according to customer testing requirements. Optional modules, fixtures, software functions and power configurations can be selected to match different injector types, pump models and local electrical standards. CHIKA also provides customized fixtures, software upgrades and technical support for special applications.

Standard Configuration

Main Test Bench
Industrial HCR918 diesel injector test bench with heavy-duty cabinet and integrated working platform.
High Pressure System
Bosch CP3.3 high-pressure common rail system capable of generating up to 2500 bar injection pressure.
Industrial Computer
Built-in industrial computer with stable hardware platform and long-term continuous operation capability.
CHIKA Test Software
Professional diesel injection testing software with intelligent test procedures, automatic reports and injector coding functions.
Electronic Measuring System
High-precision electronic flow measurement system for fuel quantity, return flow and pressure monitoring.
Cooling & Heating System
Integrated fuel temperature control system with automatic heating and cooling for stable testing conditions.
Standard Fixture Kit
Complete standard fixture package for common rail injectors and pumps.
Tool Kit
Basic maintenance tools, installation accessories and service tools.
English User Manual
Comprehensive operation manual with installation, maintenance and testing instructions.
Power Cable
Industrial power cable configured according to destination country requirements.

Optional Configuration

HEUI Testing Module
Adds complete testing capability for HEUI injectors and HEUI pumps used in hydraulic electronic fuel injection systems.
Suitable for: Caterpillar, Navistar, Perkins
Optional hardware and software package.
Piezo Injector Module
Enables testing of Bosch and Siemens piezo common rail injectors with dedicated control electronics.
Suitable for: Euro IV / Euro V / Euro VI diesel systems
Recommended for workshops servicing modern passenger and commercial vehicles.
Common Rail Pump Fixture Kit
Additional fixtures and adapters for testing CP1, CP2, CP3 and CP4 high-pressure pumps.
Suitable for: Bosch Common Rail Pumps
Selected according to pump models.
Injector Coding Module
Supports Bosch IMA, Bosch ISA, Delphi C2i/C3i, Denso QR and Siemens correction code programming.
Suitable for: Electronic common rail injectors
Software license required.
Custom Fixture Package
Customized adapters designed according to customer injector or pump models.
Suitable for: Special applications
Manufactured according to samples or drawings.
Additional Test Database
Extended injector database including newly released injector models and test plans.
Suitable for: Service centers with diverse injector brands
Database updated periodically.
Remote Installation & Training
Online installation, commissioning and operator training by CHIKA engineers.
Suitable for: Overseas distributors and workshops
Available by appointment.
Customized Power Configuration
Machine supplied according to local voltage and frequency requirements.
Suitable for: Global markets
220V / 380V / 415V available.

Fixture Notes

Custom fixtures can be designed according to customer samples or injector part numbers. CHIKA continuously develops new adapters for newly released common rail systems to ensure long-term compatibility.
Use Cases

Application Scenarios

01

Professional Diesel Injector Repair Workshops

HCR918 is designed for professional diesel fuel injection repair workshops requiring high-precision testing, calibration and maintenance of common rail injectors. It supports Bosch, Denso, Delphi, Siemens and piezo injectors with stable rail pressure, accurate flow measurement and automatic test procedures, helping technicians improve repair quality and workshop efficiency.
02

Common Rail Pump Rebuilding Centers

The HCR918 is suitable for rebuilding and servicing common rail pumps including Bosch CP1, CP2, CP3 and CP4 systems. Stable pressure generation and precise electronic measurement enable accurate diagnosis, performance verification and post-repair quality control.
03

Commercial Vehicle Fleet Maintenance

Fleet maintenance centers servicing trucks, buses, mining equipment and construction machinery can use HCR918 to diagnose injector performance, evaluate fuel delivery consistency and reduce unexpected engine failures caused by fuel injection problems.
04

Diesel Fuel System Training Centers

Vocational schools, technical colleges and diesel training institutions can use HCR918 for practical education on common rail systems, injector coding, fault diagnosis and electronic fuel injection maintenance. The user-friendly software simplifies classroom demonstrations and technician training.
05

Diesel Equipment Distributors

Distributors and diesel equipment suppliers can integrate HCR918 into their product portfolio to provide complete injector testing solutions together with after-sales technical support, installation assistance and customer training services.
06

Engine Rebuilding Companies

Engine overhaul facilities can verify injector and fuel pump performance before engine assembly, ensuring stable combustion, reduced emissions and improved engine reliability after rebuilding.
Support

Frequently Asked Questions

What injectors can HCR918 test?⌄
HCR918 supports Bosch, Denso, Delphi, Siemens and piezo common rail injectors. Additional fixtures are available for special injector models.
Does HCR918 support common rail pumps?⌄
Yes. It supports Bosch CP1, CP2, CP3 and CP4 high-pressure pumps with stable pressure generation and accurate flow measurement.
Can the machine test HEUI injectors?⌄
Yes. Optional HEUI modules enable testing of HEUI injectors and HEUI pumps used in Caterpillar and other diesel engines.
Does the machine support injector coding?⌄
Yes. Bosch IMA, Bosch ISA, Delphi C2i, Delphi C3i, Denso QR, Siemens correction codes and IQA coding are supported.
Can software be updated online?⌄
Yes. CHIKA provides online software updates, remote maintenance and technical support to keep the database up to date.
Can different voltages be supplied?⌄
Yes. 220V, 380V, 415V and customized power configurations are available according to local electrical standards.
What industries use HCR918?⌄
he HCR918 is widely used by diesel injector repair shops, fleet maintenance centers, diesel training schools, equipment distributors and engine rebuilding companies.
Can CHIKA provide customized fixtures?⌄
Yes. Customized fixtures can be manufactured according to injector models, pump types or customer samples.

Need Technical Recommendation?

Tell us your testing requirements and injector models. Our engineers will recommend the most suitable CHIKA test bench.

Request Quote
More Options

Related Products

EPS205 Common Rail Injector Test Bench
EPS205

EPS205 Common Rail Injector Test Bench

EPS205 is a compact common rail injector test bench designed for testing solenoid and piezo…

View Details →
HCR318 Common Rail Injector Test Bench
HCR318

HCR318 Common Rail Injector Test Bench

HCR318 is a professional common rail injector test bench designed for testing and maintenance of…

View Details →
HCR318C Multi-Functional Common Rail Test Bench
HCR318C

HCR318C Multi-Functional Common Rail Test Bench

HCR318C is a multi-functional common rail test bench designed for testing common rail injectors, common…

View Details →

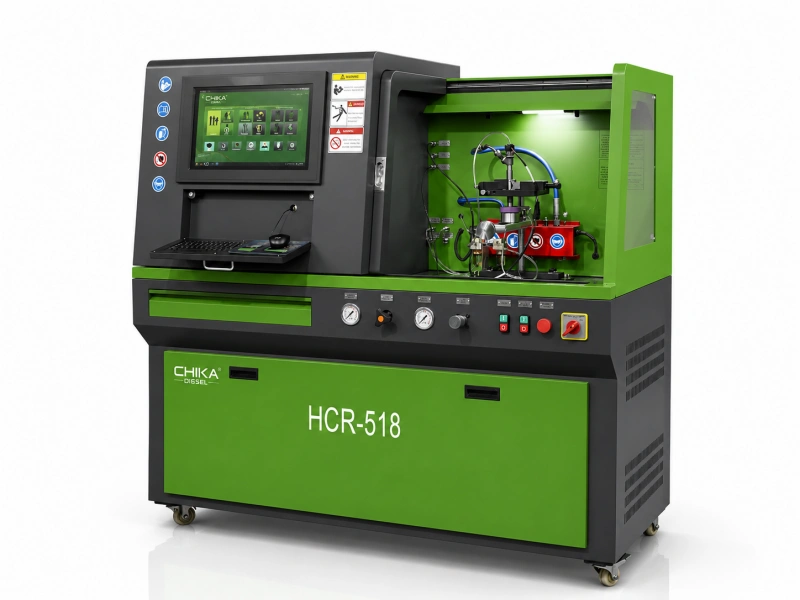

HCR518 Multi-Functional Common Rail Test Bench
